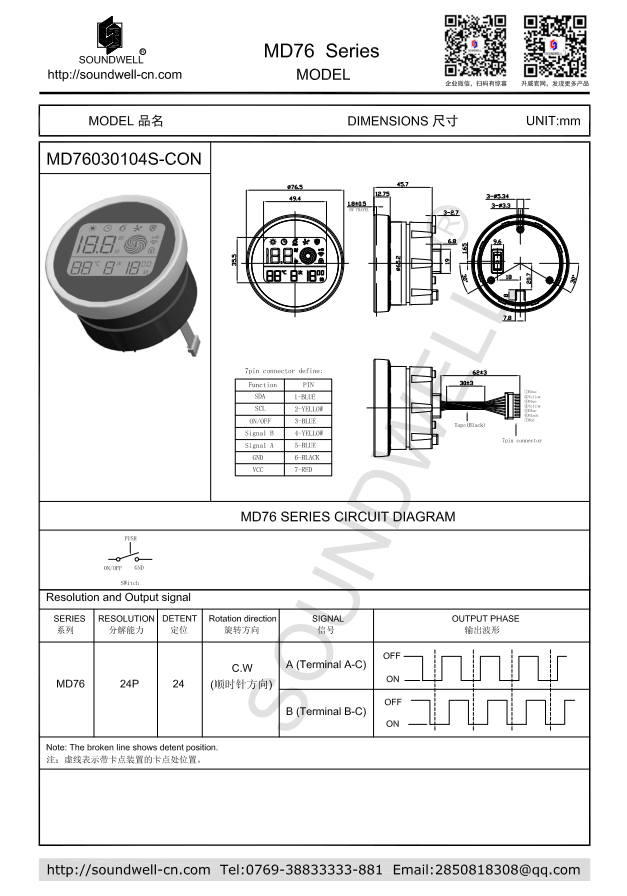

MD76 Knob Module with Rotation and Press

Series：MD76

Format：See the following profile

Specifications　　

Module Model：	MD76 series
Name：	MD76 Knob Module with Rotation and Press
Main Specifications:	Rated voltage: DC 5V Maximum rated current: 100mA Operating temperature: -20℃～70℃ Mechanical rotation angle: 360°(no stop） Number of detent: 24 Pulses: 24 Rotational torque: 300±100gf.cm Switch operating force: 600~800gf Rotational life: 100,000 cycles Min Press switch life: 100,000 cycles Min Waterproof level: IPX4
Features：	A mutli- functional knob module with a LED display, press switch and rotational encoder (optical structure).
Application field：	Washing machines, treadmills and other household appliances;

MD76 Module Product Specification

ONE、MECHANICAL CHARACTERISTIC
1. Rotational Torque: 300±100 gf.cm
2. Number of detent: 24
3. Shaft Wobble (mm p-p): 0.3mm Max

TWO、ELECTRICAL CHARACTERISTIC
1. Resolution: 24 pulses
2. Contact resistance: ＜100Ω
3. Rated power: DC5V 20mA
4. Insulation resistance: 100M? 1 Minute at DC 250V
5. Dielectric Voltage: 1 Minute at AC 300V

THREE、ENDURANCE CHARACTERISTIC 耐久特性
1. Rotational Life: 100,000 cycles Min
2. Push switch Life: 100,000 cycles MIn

Note: In this catalog, if some parameters or drawings are different from the "Approvalsheet", it's subject to the "Approval sheet".
