| Sensor model： | SD0801 series |
| Name： |
SD0801 Slide Resistive Sensor |
| Main specification: |
Travel: 8.0mm |
| Product characteristics： |
Small size with long life; High precision; |
| Application field： | It is mainly used in automobile headlight regulator. |
ONE、MECHANICAL CHARACTERISTIC
1. Sliding torque: 200gf Max
2. Slide travel: 8.0mm
TWO、ELECTRICAL CHARACTERISTIC
1. Total Resistance Range: 5KΩ±20%
2. Rated Power: 0.05W
3. Rated Voltage: 12V DC
4. Linearity error: ±1.5%
THREE、ENDURANCE CHARACTERISTIC
1. Operating Life: 100,000 Min

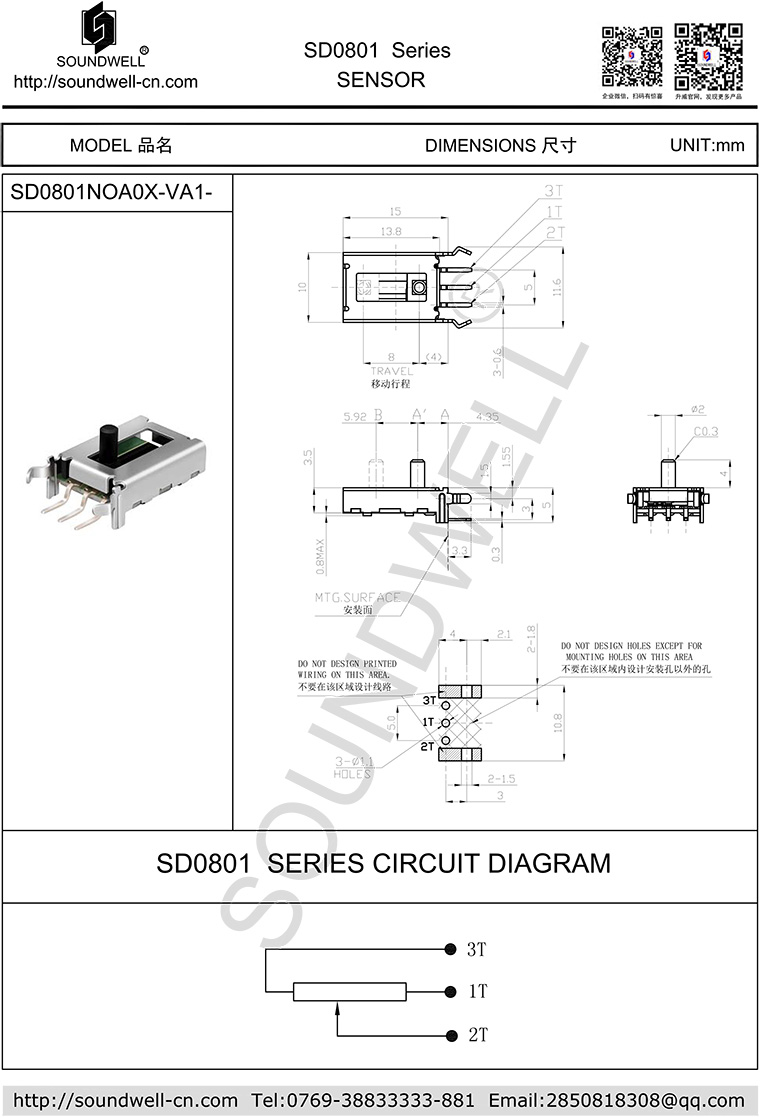

Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
