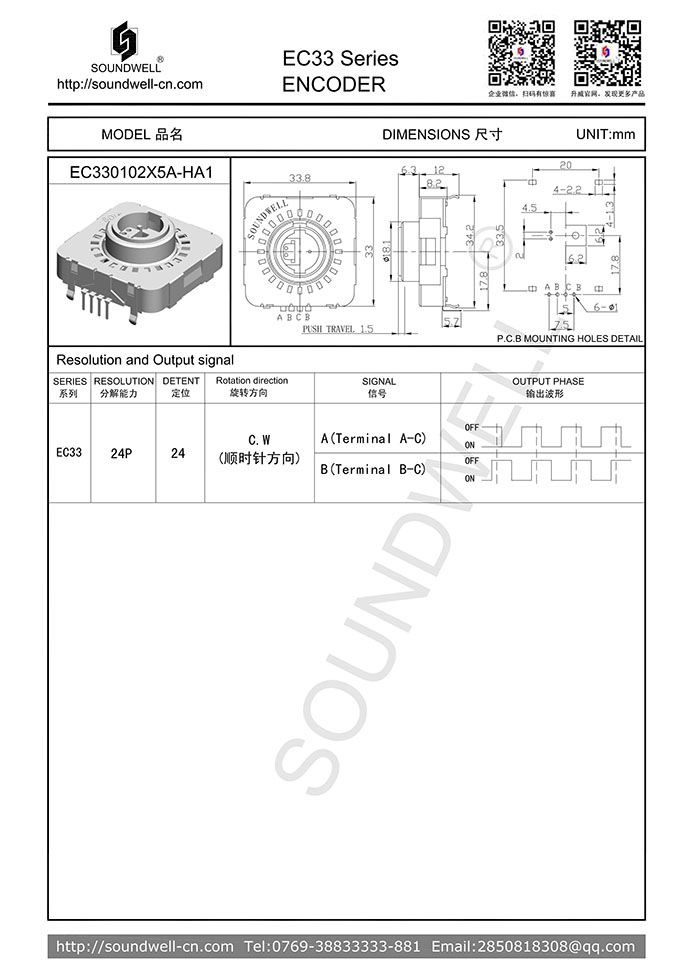

| Encoder model： | EC33 series |
| Name： |
EC33 Hollow Shaft Incremental Encoder |
| Main Specifications: | Dimensions: 33mm Rated voltage: DC 10V； Number of detent: 24； Pulses: 24； Working temperature: -10°C~70°C； Rotational life: 100,000 cycles Min |
| Product Features： | Long life with clear detents; |
| Applications： |
Household appliances, audio products and other related electronic devices; Mainly used to adjust the volume and temperature; function switch, etc. |
ONE、MECHANICAL CHARACTERISTIC
1. Rotational Torque: 30~200gf.cm
2. Number of detent: 24 (Step angle: 15±3°)
3. Push operating force: 150±80gf.cm
4. Shaft wobble: 1.0*L/30mm p-p Max (L: Mounting height)
5. Shaft play: 4° MAX
TWO、ELECTRICAL CHARACTERISTIC
1. Resolution: 24 pulses/360°
2. Phase difference: ≥4 ms
3. Rated voltage: DC 10V
4. Insulation resistance: 10M? 1 Minute at DC 50V
5. Dielectric voltage: 1 Minute at AC 300V
THREE、ENDURANCE CHARACTERISTIC
1. Rotational life: 100,000 cycles Min
Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
