EC12 Insulated Shaft Incremental Encoder
| Encoder model： | EC12 series |
| Name： |
EC12 Insulated Shaft Incremental Encoder |
| Main Specifications: |
Dimensions: 12.5mm Rated voltage: DC 5V Number of detent: 12/18/24/30 Pulses: 12/15/18 Working temperature: -40°C~85°C Rotational life: 30,000 cycles Min Push operating life: 20,000 cycles Min |
| Product Features： |
Small size encoder with highly reliable performance; Insulated shaft with push-on switch options; Available in many different variants. |
| Applications： |
Automotive electronics, professional audio, household appliances and other related electronic devices; Main functions: frequency modulation, volume adjustment, temperature adjustment, function selection, etc. |
ONE、MECHANICAL CHARACTERISTIC
1. Rotational torque: 30-200gf.cm
2. Number of detent: 12/18/24/30
3. Switch travel: 0.5±0.3 mm
4. Switch operating force: 450±200gf
5. Shaft wobble (mm p-p): 1.0 x L/30mm p-p Max (L: mounting height)
TWO、ELECTRICAL CHARACTERISTIC
1. Resolution: 12/15/18 pulses/360°
2. Phase difference: ≥4 ms
3. Rated voltage: DC 5V
4. Insulation resistance: 10M? 1 Minute at DC 50V
5. Dielectric voltage: 1 Minute at AC 50V
THREE、ENDURANCE CHARACTERISTIC
1. Rotational life: 30,000 cycles Min
2. Push operating life: 20,000 cycles Min
Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".

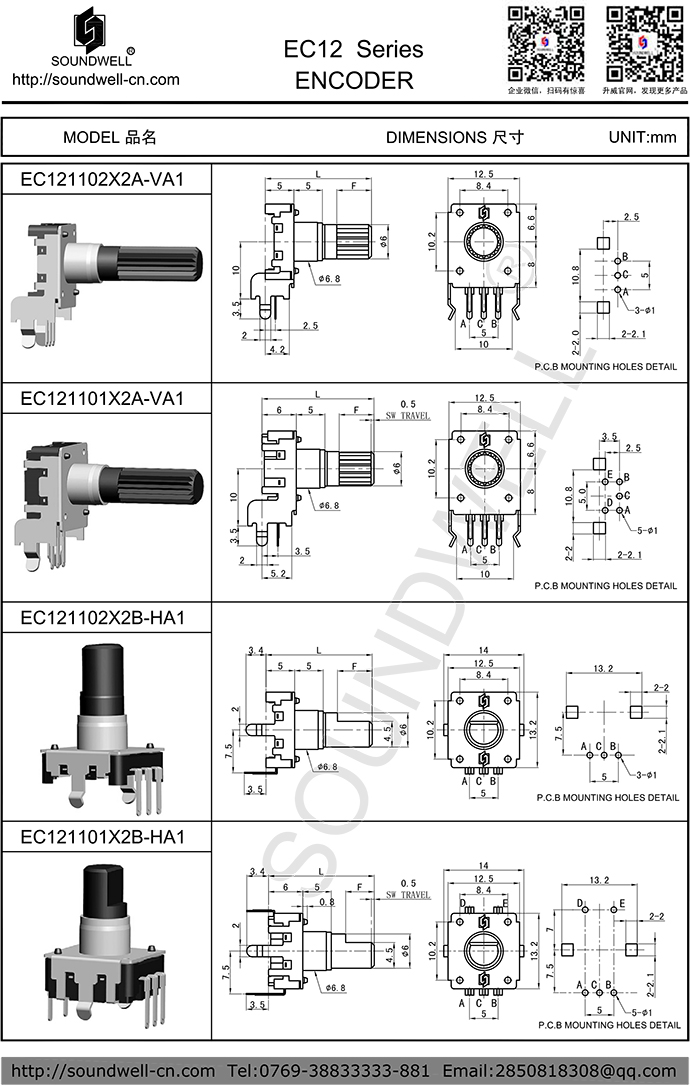

Download EC12 finished map1.pdf
.jpg)

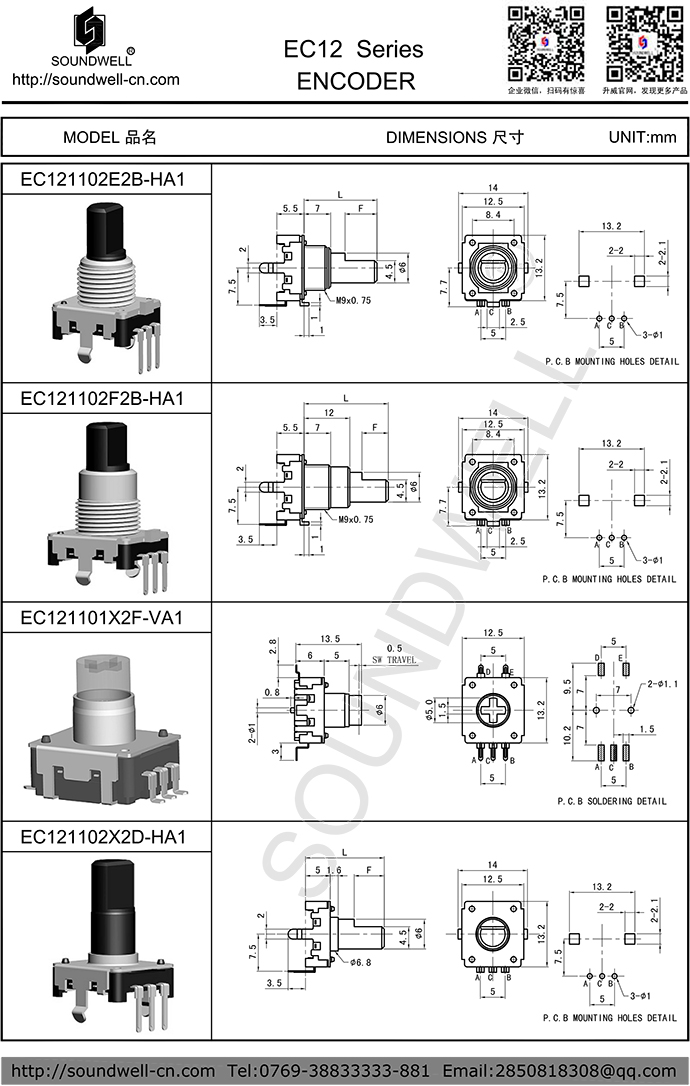

Download EC12 finished map2.pdf
.jpg)
Download EC12 finished map3.pdf
.jpg)
