EC11 Metal Shaft Incremental Encoder

EC11 Metal Shaft Incremental Encoder

  • Series：EC11金屬軸系列

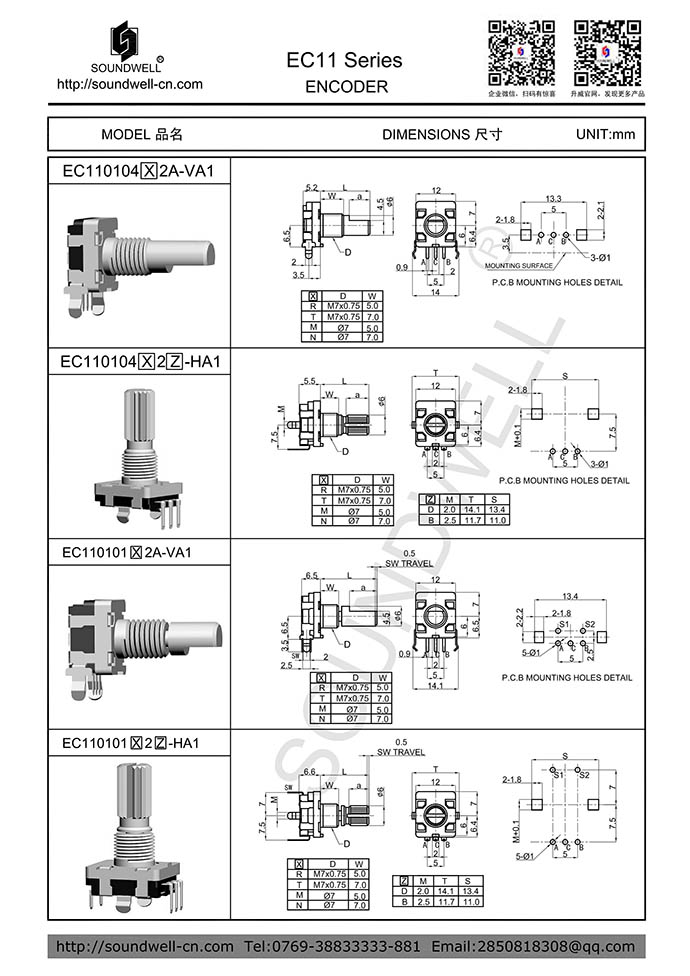

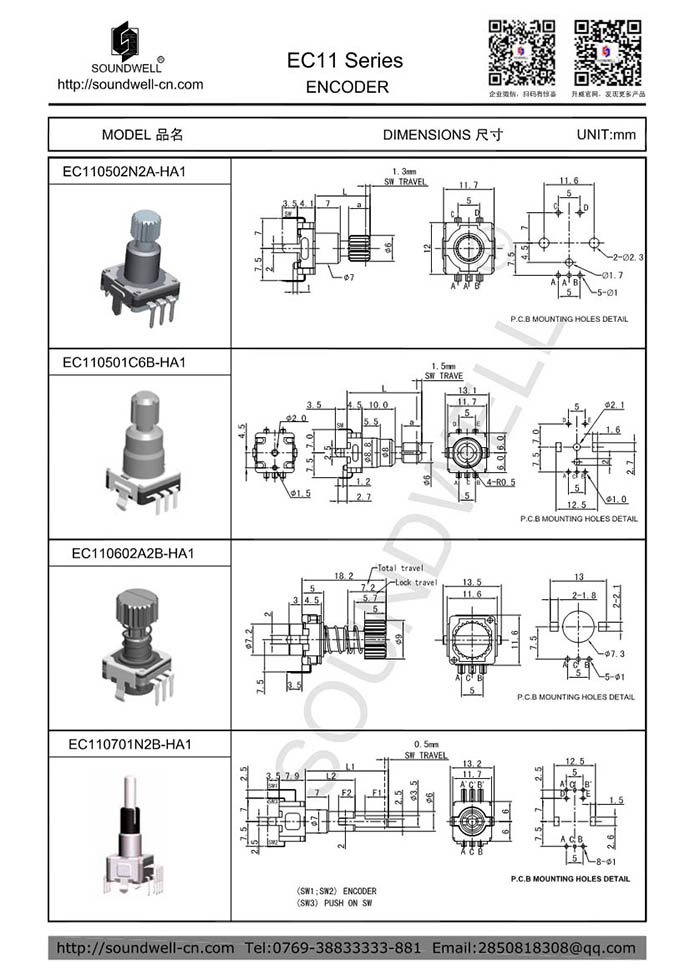

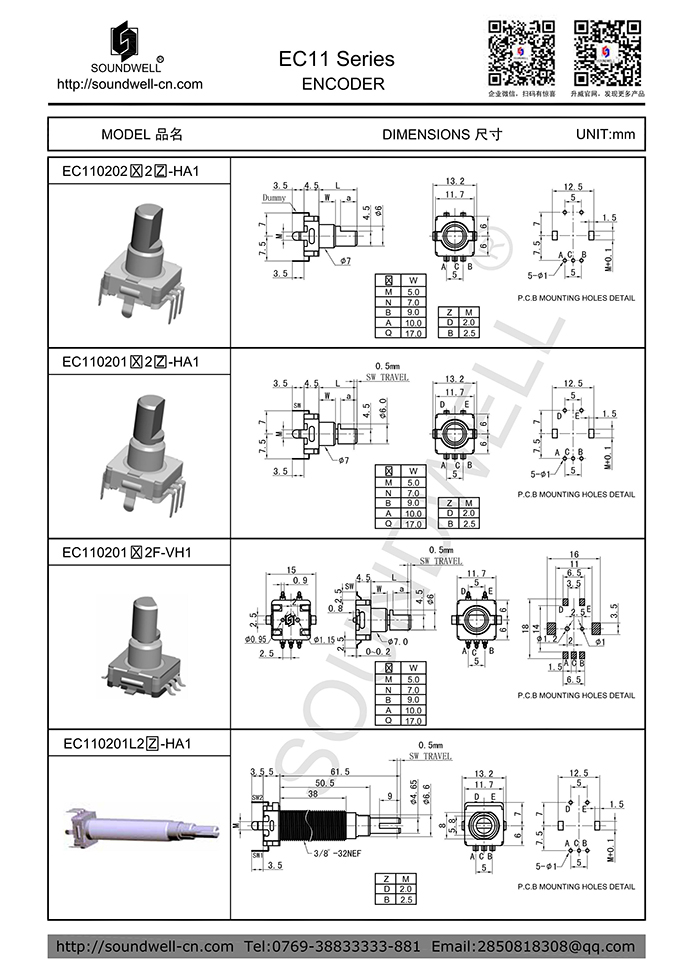

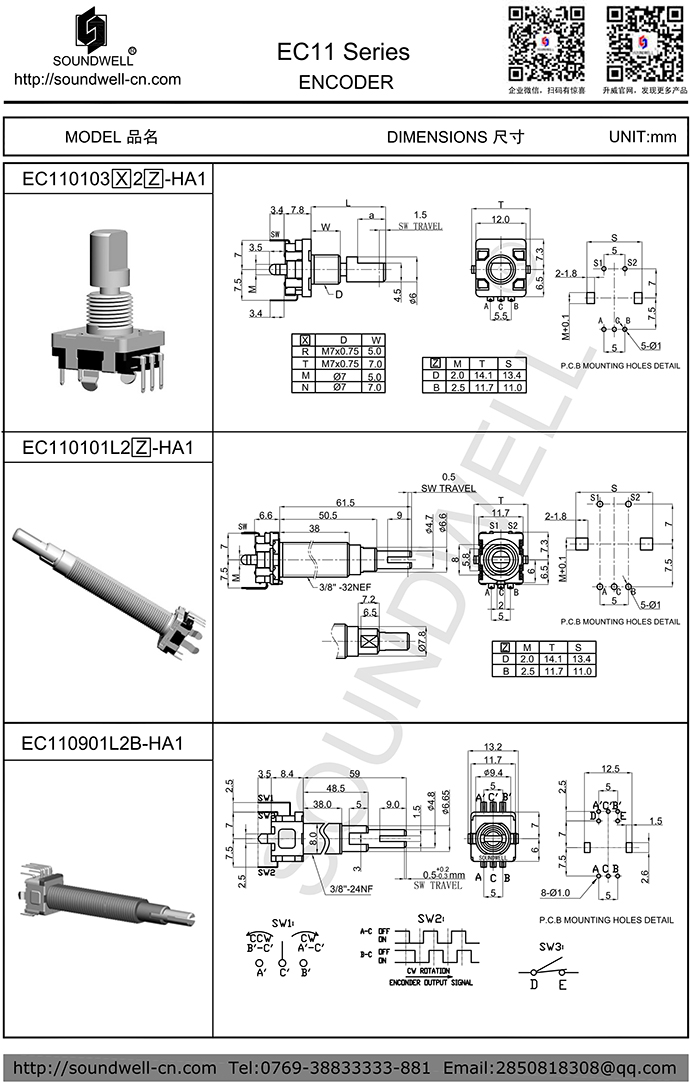

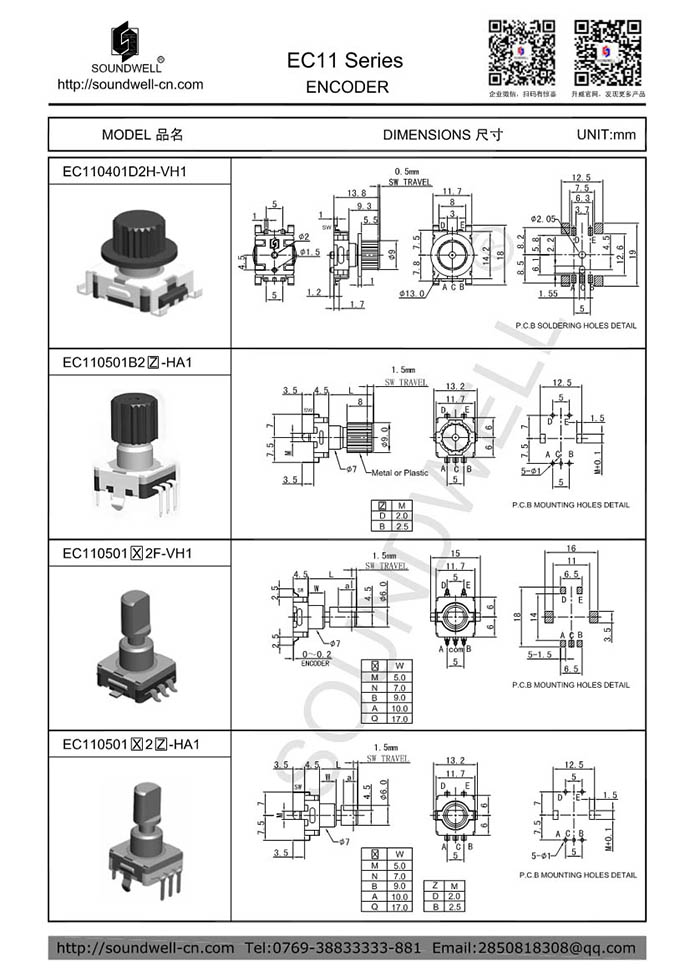

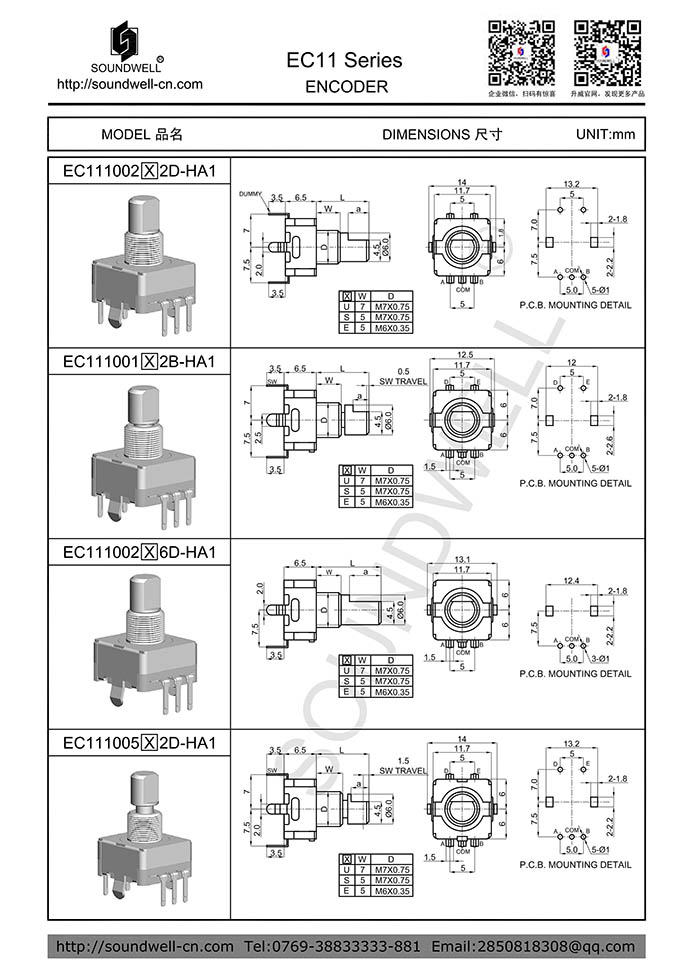

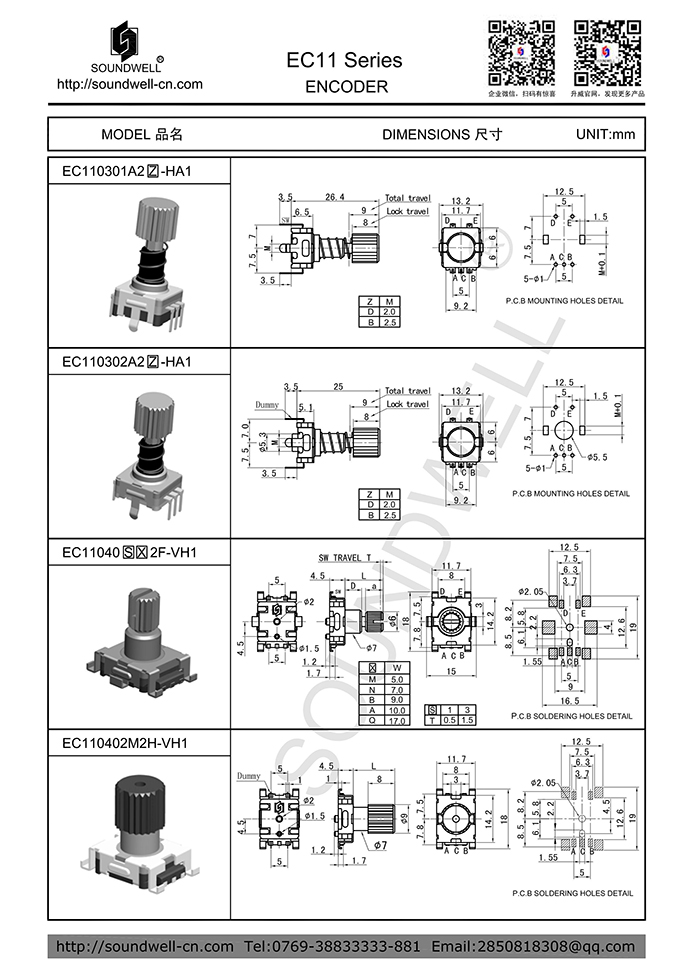

  • Format：See the following profile
    • Specifications　　

    Encoder model： EC11 series
    Name： Metal Shaft Incremental Encoder
    Main Specifications:

    Dimensions: 11mm
    Rated voltage: DC 5V
    Number of detent: 16/20/30/32
    Pulses: 8/15/16/20
    Operating temperature: -40°C~85°C
    Rotational life: 30,000 cycles Min
    Product Features：

    Small size encoder with highly reliable performance;

    Available in many different variants.
    Applications：

    Automotive electronics, household appliances and other related

    electronic devices; Mainly used to adjust the volume, temperature,

    frequency modulation and function switching.
    EC11 Product Specifications

    ONE、MECHANICAL CHARACTERISTIC
    1. Rotational torque: 20~200gf.cm
    2. Number of detent: 16/20/30/32
    3. Shaft wobble: 0.2 mm Max
    4. Shaft play: 2° Max

    TWO、ELECTRICAL CHARACTERISTIC

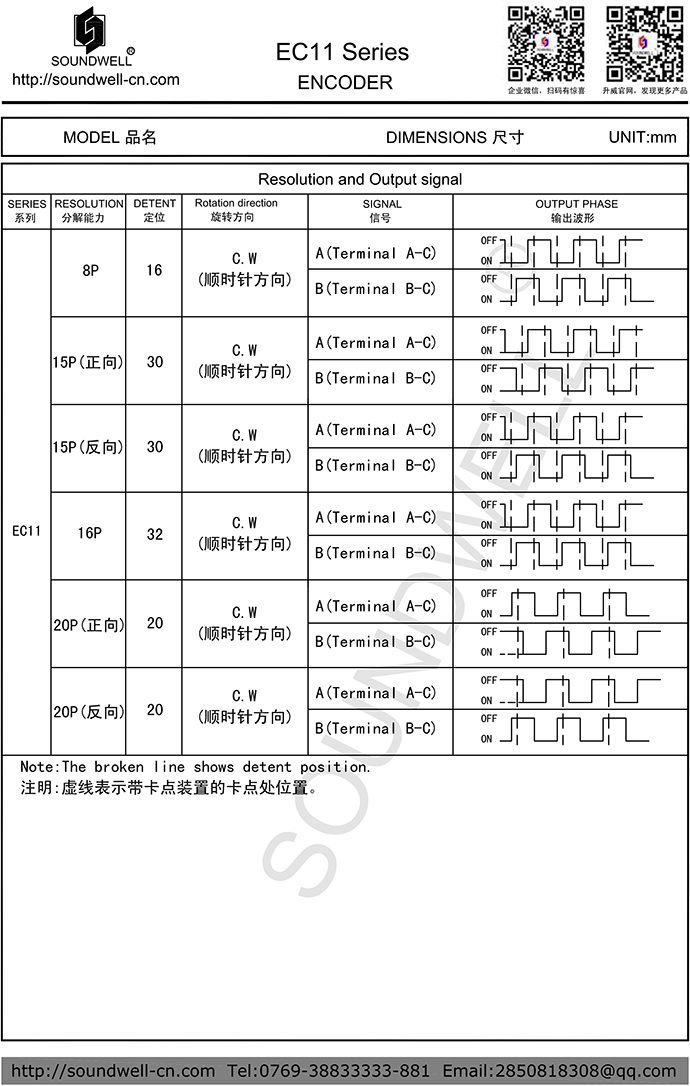

    1. Resolution: 8/16/15/20/360°
    2. Phase difference: ≥3ms
    3. Rated voltage: DC 5V
    4. Insulation resistance: 10M? 1 Minute at DC 250V
    5. Dielectric voltage: 1 Minute at AC 50V

    THREE、ENDURANCE CHARACTERISTIC
    1. Rotational life: 30,000 cycles Min

    2. Push operating life: 20,000 cycles Min

    Note: In this catalog, if some parameters or drawings are different from the "Approvalsheet", it's subject to the "Approval sheet".
